ABOUT THIS PRODUCT:

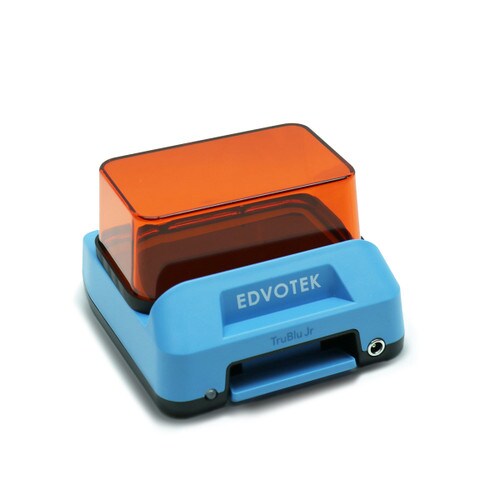

Love your M12 systems but interested in blue light visualization? The TruBlu™ Jr. is designed to upgrade your existing EDVOTEK® electrophoresis equipment to allow safe, real-time analysis of DNA fragments as they migrate through the agarose gel. This compact unit utilizes the same blue light technology that is found in the EDGE™ and TruBlu™ 2 transilluminator for visualization of SYBR® Safe or other blue light-reactive dyes. The TruBlu™ Jr. can also be used to examine fluorescence from green fluorescent protein (GFP).
**New for FALL 2024 - The TruBlu™ Jr. now includes an orange contrast hood for perfect viewing of individual gels and GFP plates!**

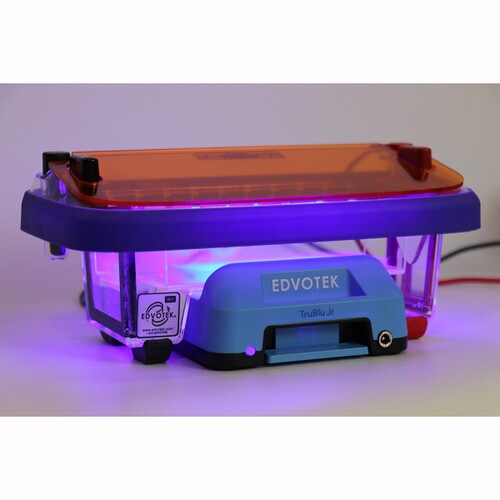

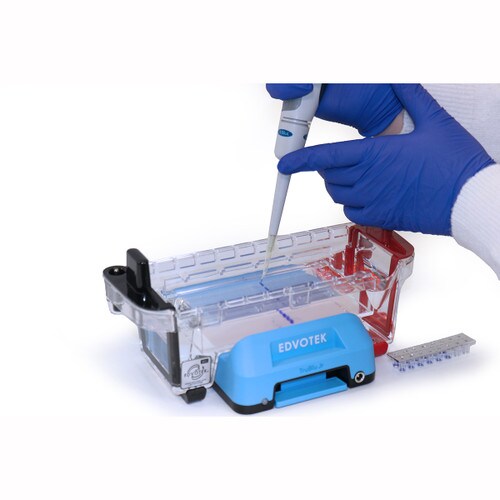

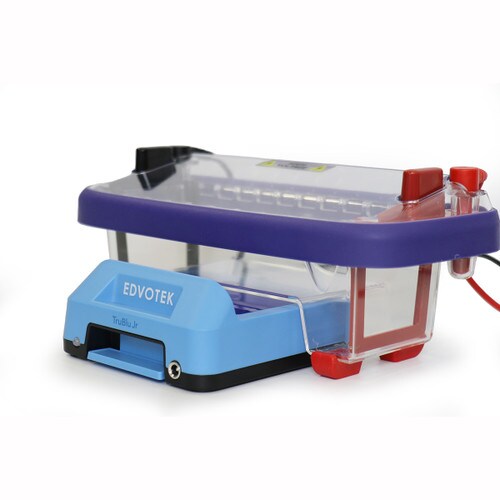

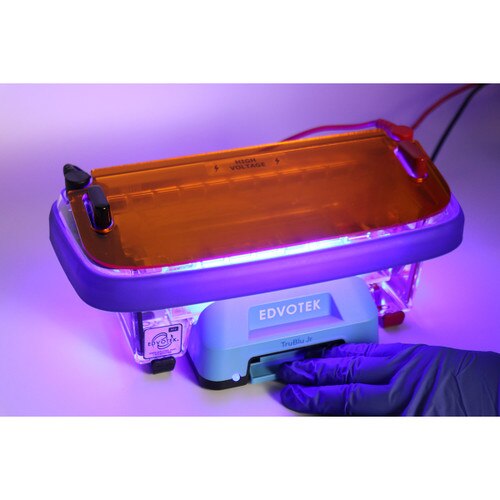

Features: • Docks Seamlessly with the EDVOTEK® M12 Electrophoresis System

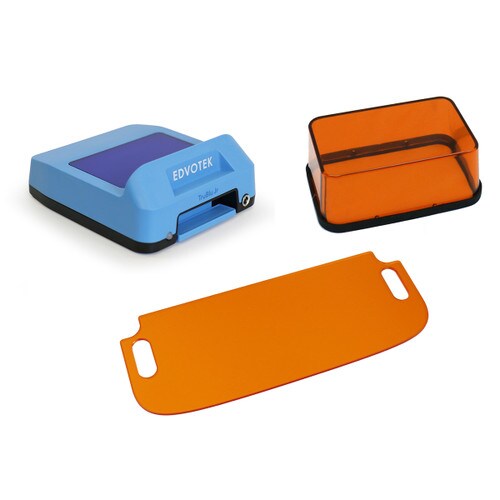

• Includes Orange Contrast Lid for M12 Cover

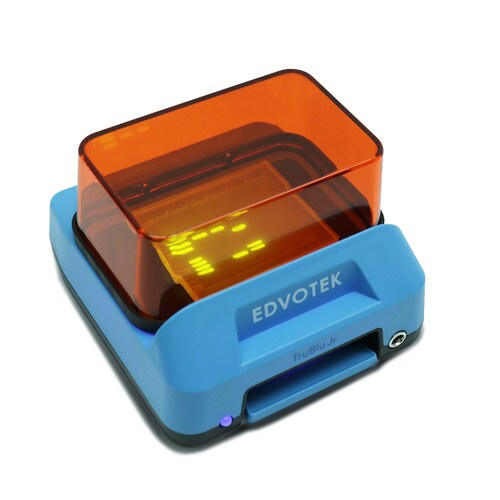

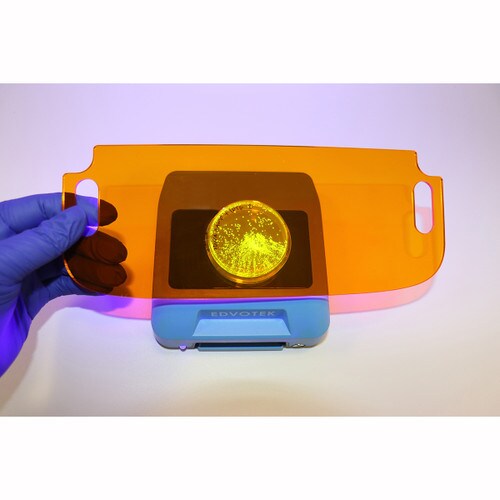

• Includes Orange Contrast Hood for TruBlu™ Jr.
• Battery operated for convenient use in the classroom
• Safe - Non-UV wavelength
• Blue Light Emission Spectrum Centered Around 470 nm
• Viewing Surface: 10 x 6 cm
• Universal Voltage for Worldwide Use
Specifications:• LED wavelength: 470 nm +/- 10 nm
• LED Life: 50,000 hours
• Input voltage: 100-240V, 50/60 hz, 0.6A
• Output voltage: 5V DC, 0.5A
• Dimensions: 12 cm (w) x 14 cm (l) x 6 cm (h)
• Operating conditions: 4°C to 37°C, 75% maximum humidity
