CRISPR-Cas Teaching Resources

The gene editing tool CRISPR-Cas9 was developed by bacteria at the beginning of evolutionary history as a defense against viral attacks. It was created by nature, not human beings, but we discovered it in the late 1980s. We figured out how it worked in the early years of this century, and have now made it into a valuable part of our efforts to improve human health, make our food supply hardier and more resistant to disease, and advance any arm of science that involves living cells, such as biofuels and waste management.

The CRISPR-Cas System in Action

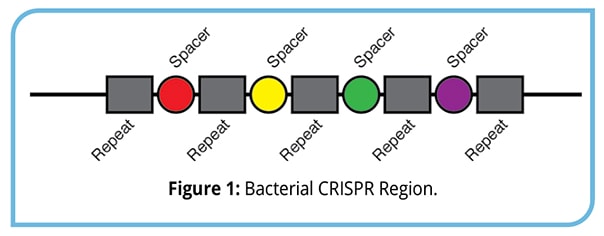

In 1987 Yoshizumi Ishino and colleagues at Osaka University in Japan were researching a new microbial gene when they discovered an area within it that contained five identical segments of DNA made up of the same 29 base pairs. The segments were separated from each other by 32-base pair blocks of DNA called spacers, and each spacer had a unique configuration (Figure 1). This section of DNA didn’t resemble anything microbiologists had seen before and its biological significance was unknown. Eventually these strange segments and spacers would be known as Clustered Regularly Interspaced Short Palindromic Repeats – or CRISPR. Scientists also discovered that a group of genes coding for enzymes they called Cas (CRISPRassociated enzymes) were always next to CRISPR sequences.

In 2005, three labs noticed that the spacer sequences resembled viral DNA and everything fell into place.

When a virus invades a bacterium, the bacterium identifies the virus as foreign and collects some of its DNA so it can be recognized the next time it shows up. The bacterium puts the viral DNA into a spacer in the CRISPR section of its own DNA. As the spacers fill up with viral DNA, they become a database of viral enemies.

To set up an ongoing defense system, the bacterium takes each piece of viral DNA out of storage in the spacers and transcribes it into a strand of RNA, then a Cas enzyme binds to one of these loaded RNA strands. Together, the viral-loaded RNA and the Cas enzyme drift through the cell. If they encounter foreign DNA that matches the spacer sequence, the RNA will base-pair so the Cas enzyme can chop the invader’s DNA into pieces and prevent it from replicating. This system made other bacterial defenses, such as restriction enzymes, look very primitive. When they used CRISPR-Cas, bacteria could find any short sequence of DNA and attack it with precision.

CRISPR-Cas9 History

Because DNA sequencing technology was in its infancy in 1987, the Japanese scientists didn’t know if the mysterious structure they had discovered only occurred in E. coli; but by the late 1990s technology had advanced and microbiologists could sequence most of the microbial DNA in seawater and soil samples.

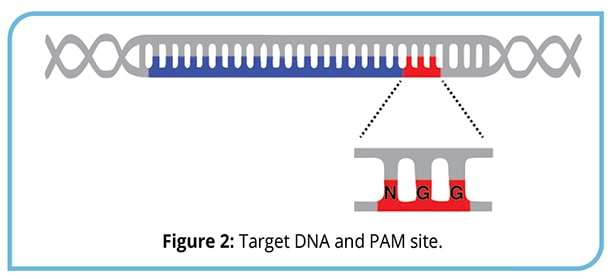

Thanks in part to the newly available DNA sequencing data, a study led by Ruud Hansen found that the Cas enzymes could snip DNA but didn’t know why. At the same time, Alexander Bolotin’s team at the French National Institute for Agricultural Research found that the spacers all share a common sequence they called the protospacer adjacent motif (PAM). The PAM enables Cas enzymes to recognize their target. Different Cas enzymes recognize different PAM sequences; the most commonly-used Cas9 from Streptococcus pyogenes recognizes the PAM sequence 5'-NGG-3', where “N” can be any nucleotide base (Figure 2).

The discovery that CRISPR spacers were related to viral DNA sequences occurred by three different groups of scientists. Eugene Koonin, an evolutionary biologist at the National Center for Biotechnology Information in Bethesda, Maryland, developed a theory that bacteria were using CRISPR to fight off viruses. Koonin’s theory was tested by Roldolphe Barrangou and Philippe Horvath, then microbiologists at the yogurt company Danisco in France. The company used bacteria to convert milk into yogurt, and entire cultures could be wiped out by bacteria-killing viruses. Barrangou and his team infected one of their yogurt bacteria – Streptococcus thermophilus – with two strains of viruses and cultured the resistant bacteria that survived the assault. Upon examination, they found DNA from the viruses they had used inside CRISPR spacers.

Some of the other contributors to CRISPR-Cas between 2002 and 2013 include: John van der Oost of the University of Wageningen in The Netherlands (the discovery of small CRISPR RNAs), Luciano Marraffini and Erik Sontheimer at Northwestern University in the USA (CRISPR targets DNA, not RNA), Sylvain Moineau at the University of Laval in Canada (CRISPR-Cas9 can produce double-stranded breaks in target DNA), and Virginijus Siksnys at Vilnius University in Lithuania (CRISPR systems are self-contained units that can be cloned, and Cas9 can be reprogrammed to a site of choice by changing the sequence of the CRISPR rRNA).

The next step in the CRISPR story was carried out by three different scientists at almost the same time: Jennifer Doudna at the University of California in Berkeley who worked on microbial CRISPR-Cas systems; Emmanuelle Charpentier, then at the University of Vienna in Austria, who also worked on microbial CRISPR-Cas systems; and Feng Zhang at the Broad Institute of MIT who pioneered CRISPR systems in mammalian and human cells. All three of these scientists created mechanisms that made CRISPR a real research tool and not just an interesting phenomenon.

Jennifer Doudna was an RNA expert who was trying to discover all the things that RNA can do besides being a protein template. She had already found that it could be used as a sensor and could control the activity of genes when Blake Wiedenheft joined her laboratory. Wiedenheft wanted to study Cas enzymes to understand how they worked, and Doudna sponsored his research because she thought the chemistry would be interesting, not because she thought CRISPR had any practical applications.

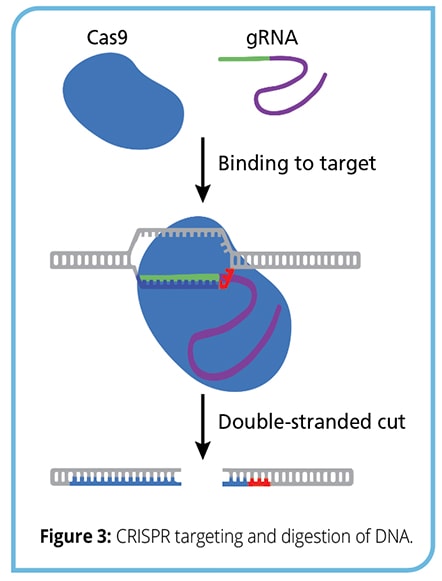

What they discovered was that Cas enzymes could cut DNA and were programmable. Using the CRISPR-Cas9 system from Streptococcus pyogenes, which causes strep throat, Doudna and her colleagues figured out how to hand the Cas9 enzyme an RNA molecule that matched a sequence of DNA they wanted to cut from the genome, then guide it to the target site (Figure 3).

Meanwhile, Charpentier and her colleagues were mapping all the RNAs in Streptococcus pyogenes and finding a large number of new small RNA molecules they called trans-activating CRISPR RNA (tracrRNA) that lived close to the S. pyogenes CRISPR system. They also discovered that, unlike other CRISPR systems that contained one RNA strand and many proteins, S. pyogenes’ CRISPR system contained two RNAs (tracrRNA and CRISPR RNA) and only one protein – Cas9. This system was so much simpler than other CRISPR systems that the team thought it could be harnessed as a powerful genetic engineering tool. Charpentier predicted that the two RNAs worked together to guide Cas9 to specific viral DNA sequences, and she was right.

Charpentier presented her findings in 2010 at a CRISPR meeting in Wageningen, The Netherlands, and it was the highlight of the conference. In 2011, she and Doudna met at an American Society for Microbiology meeting in Puerto Rico and agreed to collaborate on the problem of how Cas9 cleaved DNA and how it could be adapted to make targeted cuts in a genome. They solved this problem and their results have been used successfully around the world.

At the same time, Feng Zhang, an MIT researcher exploring the genetics of complex psychiatric and neurological diseases, was looking at ways to edit eukaryotic human and mammalian cells. In 2010, he published a report on how to do so using a previously developed gene editing system called TALEN. He published a second paper in 2012 outlining how he and his team had used CRISPR-Cas9 to edit the genome of mammalian cells, and in 2015 announced the creation of a simpler and more precise tool called CRISPR-Cpf1. In 2016, CRISPR-CasC2c2, that targets RNA rather than DNA, was unveiled.

Putting CRISPR-Cas to Work

The ability of CRISPR-Cas to specifically target and cut DNA, combined with modern DNA sequencing, has opened new avenues in genetic engineering, molecular biology, and synthetic biology. Researchers can determine the sequence of a segment of a gene, design a CRISPR guide RNA (gRNA) to specifically cut the DNA, and combine everything within a cell to efficiently change the DNA. The gRNA combines the tracrRNA and CRISPR RNA into a single DNA molecule, simplifying delivery into a cell. One of the most common uses of CRISPR technology is to digest a gene to disrupt its function. Once cut, DNA repair mechanisms will try to mend the double stranded break, often resulting in small insertions, deletions, or other mutations that disrupt gene function.

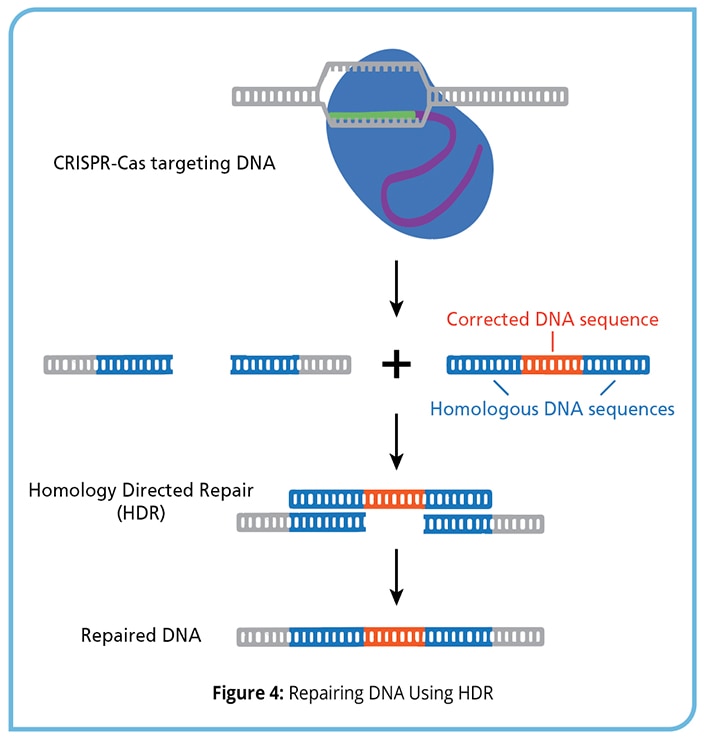

In addition to using CRISPR-Cas systems to disrupt mutated genes, scientists can use CRISPR to replace them with genes that function the way they are supposed to (Figure 4). First, the DNA is cut using CRISPR-Cas to create a double stranded break. Next, the cells are given a template DNA strand, containing the correct sequence, which can be incorporated into the cut DNA using homology directed repair (HDR). With HDR, the natural cellular machinery will incorporate the template DNA into the genome at the site of the CRISPR digest. By controlling the template DNA strand, researchers can repair mutated genes or even insert entirely new genes into an organism. CRISPR-Cas systems allow researchers to easily place the new genes precisely where they want them, unlike some of the older methods of gene therapy where the new genes are randomly inserted into the plant or animal genomes.

Scientists are already using CRISPR to insert new genes into healthy genomes that will make plants, in particular, more resistant to disease, able to better withstand the weather where they grow, or produce higher crop yields. Some past projects include increasing the vitamin A content of yams in developing countries to combat eye disease and inserting human genes for the blood components used to treat hemophilia into tobacco plants.

Are There Any Risks When Using CRISPR-Cas in a Living Organism?

Nature’s creations aren’t formed in a laboratory, they are formed in specific environments for specific purposes and sometimes parts of that original environment are critical to their success. The sickle cell trait is a good example. Sickle cell anemia is an inherited disease caused by a mutation that produces an abnormal hemoglobin protein. The mutated hemoglobin can change the shape of red blood cells, causing them to become rigid and get caught in blood vessels. The sickle cell trait originally developed in Africa as a defense against malaria. The twisted blood cells are resistant to infection from malaria, and cyanate, a chemical found in the local guava and cassava plants, can help to minimize some of the difficulties from the mutated cells. When African people went to parts of the world that did not contain cyanate-rich plants, those oddly shaped red blood cells began to cause additional problems.

Similarly, although initial research has been extremely successful, scientists have discovered a number of unexpected results while using CRISPR-Cas in eukaryotic organisms. For example, although CRISPRCas cleavage is incredibly specific, it is still possible to have off-target effects - sites in the DNA with matching sequences to the guide RNA, as well as unexpected sites that are still targeted and digested. In addition, some studies have linked CRISPR to a potential increase in cancer risk in early non-clinical tests. Therefore, additional experimentation is essential to ensure safety before each round of clinical trials.

The CRISPR mechanism developed in single- celled organisms (bacteria) to fight off viruses. It is possible that our attempts to use this system outside of bacteria is leading to some of these unexpected issues. Scientists are trying to use it in complex, multicellular organisms with thousands of internal wild-card variables and many more environmental variables that come into play.

Basic genetics tells us that, while there are approximately 3 billion base pairs in human DNA, only about 2% of them are organized into genes that can be translated into the messenger RNA (mRNA) that tells our cells how to make proteins. The other 98% of our genome is made up of what we call non-coding DNA, and we have very limited ideas about what that does. So far we have discovered that non-coding DNA plays a role in how genes are expressed, the architecture of the chromosomes, and how we inherit specific traits as a species, but how it does these things is still unclear and there are undoubtedly other functions performed by that mysterious 98% about which we know nothing at all. When we start tinkering with the genome, we can expect surprises, and not all of them will be pleasant ones.

But the only way to find out what we need to know is to begin exploring. It will take years to understand how our genome works and how each part of it affects the others, so we must proceed rigorously and cautiously, a small step at a time. Fortunately, a small step at a time with no object but exploring an interesting phenomenon is a classical description of good science.

Scientists in many countries are now performing hundreds of CRISPR experiments with the diverse goals of repairing defective DNA in mice, editing genes in crops to engineer a better food supply, and rewriting the genome of the elephant to recreate a woolly mammoth. New companies using Doudna, Charpentier, and Zhang’s technologies are starting up to address everything from new cancer treatments to altering insect genomes and eliminating the mosquitoes that carry malaria.

CRISPR Classroom Kits

Cat. #135 Treating Cystic Fibrosis with CRISPR:

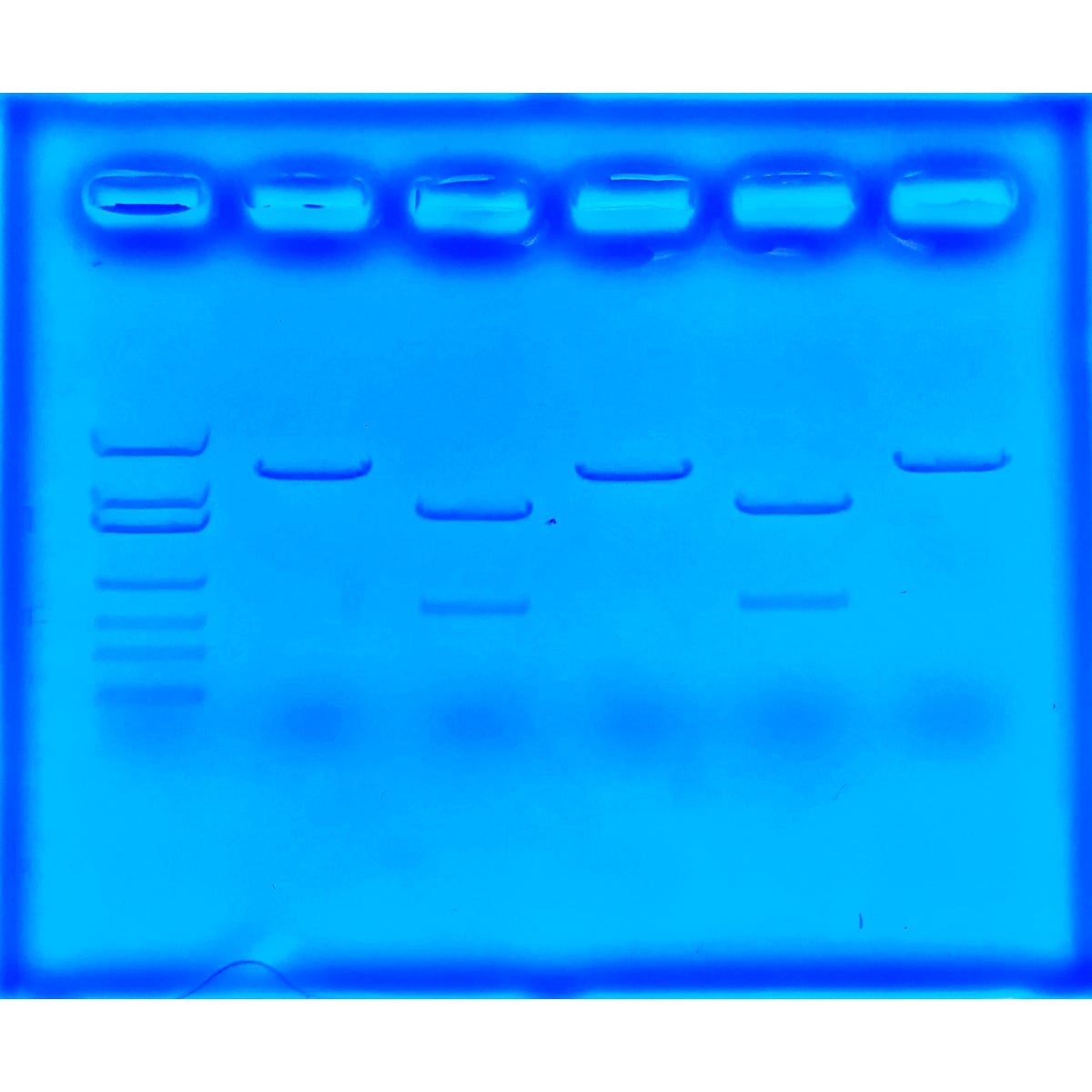

In this experiment, students will simulate the use of CRISPR-Cas9 to target a genetic mutation found in a patient suffering from Cystic Fibrosis. Students will develop an understanding of guide RNA (gRNA) design, and use agarose gel electrophoresis to examine pre-prepared DNA samples after CRISPR treatment.

Cat. #210 A-maize-ing Editing: Using CRISPR to Improve Crops

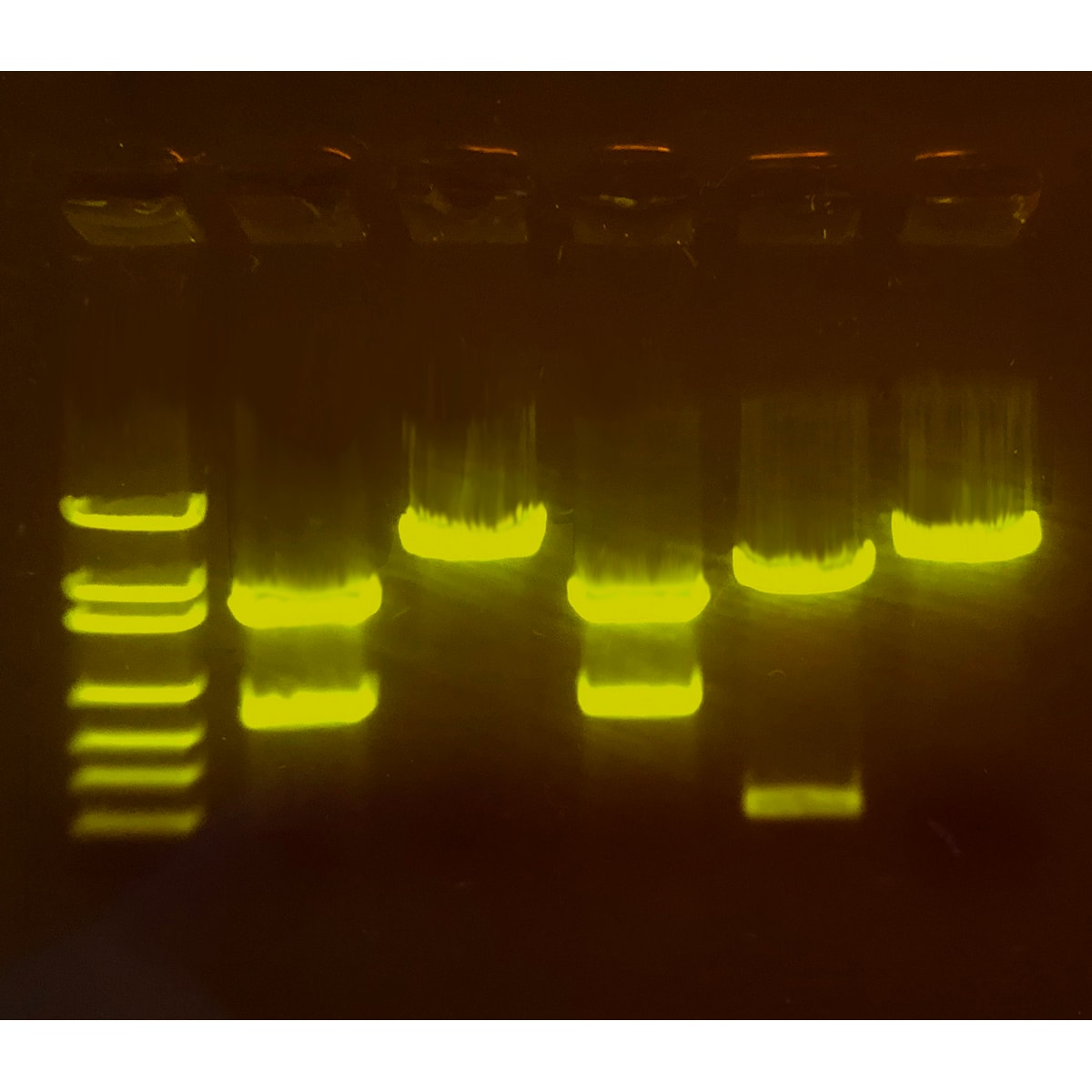

Explore cutting-edge biotechnology with this hands-on CRISPR-Cas9 simulation. Students will assume the role of plant geneticists working to develop corn crops capable of surviving, and thriving, in a changing environment. This experiment will allow students to develop an understanding of CRISPR-Cas9 applications in the laboratory, cleave DNA, and examine their results after gel electrophoresis.

• Hands-On Crispr Cas 9 Simulation
• Explore this cutting edge technology with minimal equipment and class time requirements
• Create four guide RNAs (gRNAs), then use BLAST to verify and evaluate their specificity
• Test all four gRNAs plus control and analyze results using gel electrophoresis

Cat. #307 Code Breakers: Using CRISPR to Rewrite Genetics

Unlock the exciting world of gene editing and investigate the incredible power of CRISPR technology right from your classroom! In this experiment, students explore cutting-edge genetic engineering using CRISPR-Cas9 to knock out GFP and B-galactosidase genes in classroom safe bacteria. Additionally, students test the specificity of CRISPR-Cas9 first hand by switching the CRISPR RNA templates and analyzing the results.

• Explore genetic engineering, CRISPR, and the central dogma of molecular biology in this comprehensive experiment.
• Transform classroom-safe E. coli with CRISPR RNA templates to test the targeting specificity of the technology.
• Identify successful gene knockout based on the color of the cells.

Cat. #310 Hack the Planet: Using CRISPR to Teraform Mars

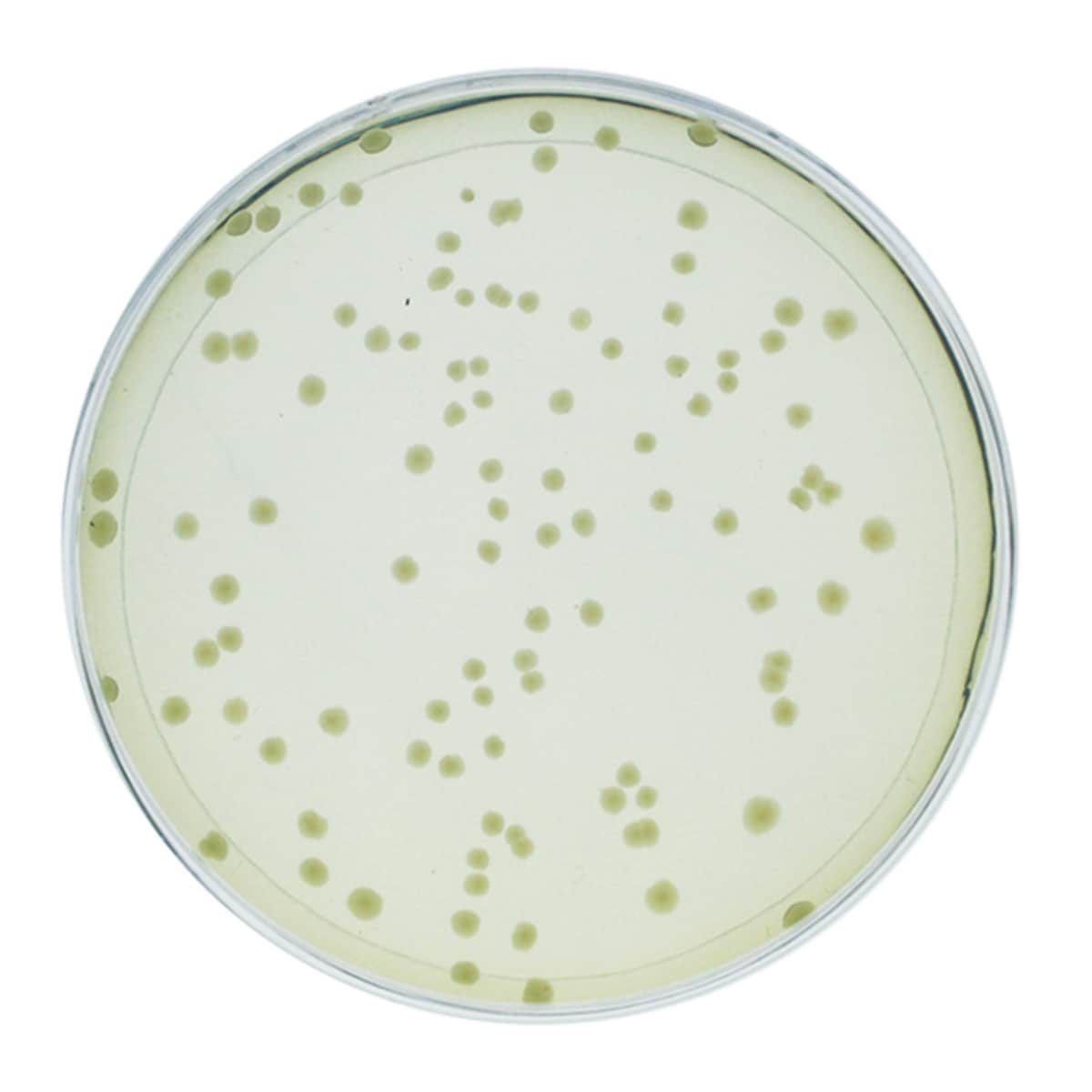

In this experiment, students will engineer bacteria that are capable of surviving on a distant planet! Students will simulate the use of CRISPR-Cas9 to modify bacterial DNA, which will then be transformed into auxotrophic E. coli that are incapable of surviving on the Martian surface. Only bacteria that receive the successfully edited DNA can survive, thrive, and help to terraform Mars!

Cat. EVT-031 Origami Organelles CRISPR Model

CRISPR is a revolutionary new genetic engineering technique that makes editing genomes easy and inexpensive. It is based on a type of immune system found in many types of prokaryote.

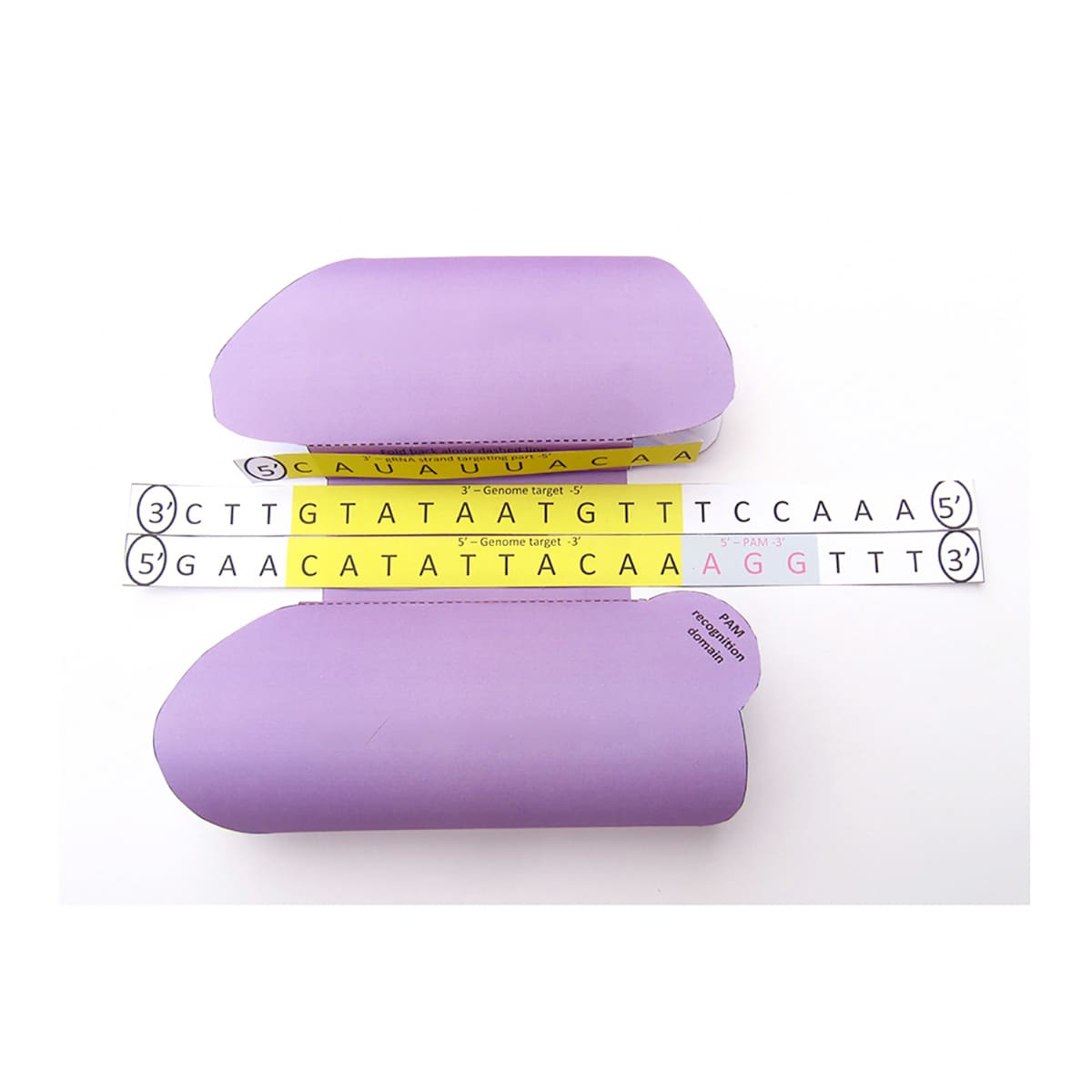

Students first make 3D models of the components of CRISPR - the enzyme Cas9 and guide RNAs. Next, they use these to see how genome editing is done. Making the model and carrying out the activity makes CRISPR easy to understand!

Origami Organelles are downloadable paper models that you print and make as many times as you like! When you purchase a model, you are licensed for unlimited use on a single site or campus.

Informational Videos:
