Investigation 9: Biotechnology - Restriction Enzyme Analysis of DNA

SKU: AP09-112
BEST SELLER
$99.00

ABOUT THIS PRODUCT:


NEW & IMPROVED - Now for 10 Lab Groups!

Analysis of Eco RI Cleavage Patterns of Lambda DNA

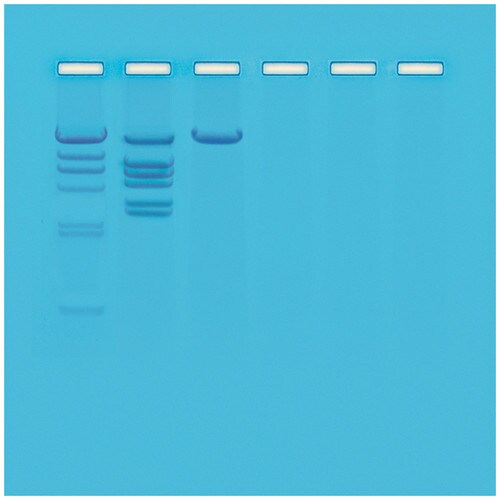

This experiment introduces the use of restriction enzymes as a tool to digest DNA at specific nucleotide sequences. Bateriophage lambda DNA has a linear structure and 6 Eco RI recognition sites. Separation by agarose gel electrophoresis of an Eco RI digest of lambda DNA will yield 6 bands (5 distinct bands, two are very close in size) corresponding to the DNA fragments.

• Introduce restriction enzymes and their ability to digest DNA at specific nucleotide sequences
• Understand how electrophoresis separates differently-sized molecules
• Perform agarose gel electrophoresis
• Load, run, analyze, compare and size lambda DNA cut with HindIII, lambda DNA cut with EcoRI, and uncut lambda DNA

DOWNLOAD SAMPLE INSTRUCTIONS
Details

Group Size:

For 10 Gels

Time Required:

Complete in 60 minutes

Kit Includes:

Instructions, DNA samples (packaged as either Pre-aliquoted QuickStrip™ connected tubes or as individual 1.5 ml (or 0.5 ml) microcentrifuge tubes), UltraSpec-Agarose™, Electrophoresis Buffer (50X), Practice Gel Loading Solution, FlashBlue™ DNA Stain.

All You Need:

DNA Electrophoresis, Micropipettes: 5-50 µl (Optional), White Light Box, & Microwave or Hot Plate.

Storage:

Room Temperature Stable. Storage of Ready-to-Load QuickStrip™ samples in the refrigerator is recommended.

Resources

Instructional Videos:

BioTech Equipment Tips:

Safety Data Sheets:

Quick Guides:

Group Size:

For 10 Gels

Time Required:

Complete in 60 minutes

Kit Includes:

Instructions, DNA samples (packaged as either Pre-aliquoted QuickStrip™ connected tubes or as individual 1.5 ml (or 0.5 ml) microcentrifuge tubes), UltraSpec-Agarose™, Electrophoresis Buffer (50X), Practice Gel Loading Solution, FlashBlue™ DNA Stain.

All You Need:

DNA Electrophoresis, Micropipettes: 5-50 µl (Optional), White Light Box, & Microwave or Hot Plate.

Storage:

Room Temperature Stable. Storage of Ready-to-Load QuickStrip™ samples in the refrigerator is recommended.
